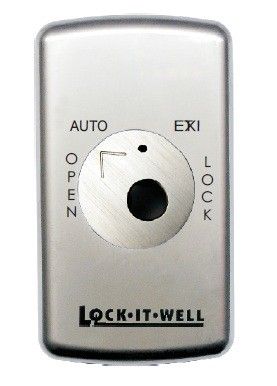

EZY Auto Key Switch - 4 Posn Key KD
Description
AUTOMATIC DOOR SERIES KEY SWITCHES
Designed for control of Automatic doors on commercial building (Can be used for other applications). The "A" series uses a unique removable cylinder enabling convenient master keying and key recombination’s. The lock cylinder also serves to lock in place a metal cover protecting the mounting screws from removal.
Features:
Incorporates specialized lock cylinders for key removable in multiple positions.
Cylinder removable from front without risk of the switch falling apart.
May be master keyed into most common lock brands and high security lock systems - EXCLUDES BARREL & KEYS
Electrical isolated cylinder for added safety.
Maximum current ratings.
AC1 10 amp 440v
DC1 10 amp 24v
Ensure that all terminals are tight
Maximum 2 x 1.5mm wires per terminal
EXCLUDES BARREL & KEYS
