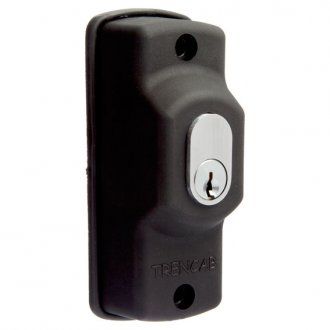

BDS (Trencab) MS-S1 Momentary Switch

Stock Code:
238001
POA

Description

Supplied as a spring loaded momentary function with the option to be changed to on/off with the cams provided.
Made from glass filled nylon for strength and IP67 rated it is ideal for external applications. 570 cylinder supplied.

FEATURES:
On/off and spring return momentary key switch.
12 to 48Vdc or 24Vac.
Suitable for indoor and outdoor applications.
Dimensions 117 (L) x 42.5 (D) x 47 mm (W).
Uses 570 cylinder LW4 version supplied.
Rubber gasket standard.
IP67 rated.
500 mm wiring leads attached.
Body and cams made from tough glass filled nylon (black).
On/off application cams provided.
Compatible to most restricted keying systems.
Supplied with 2 x stainless steel T20 Torx security screws.

Supplied WITH CYLINDER & KEYS
