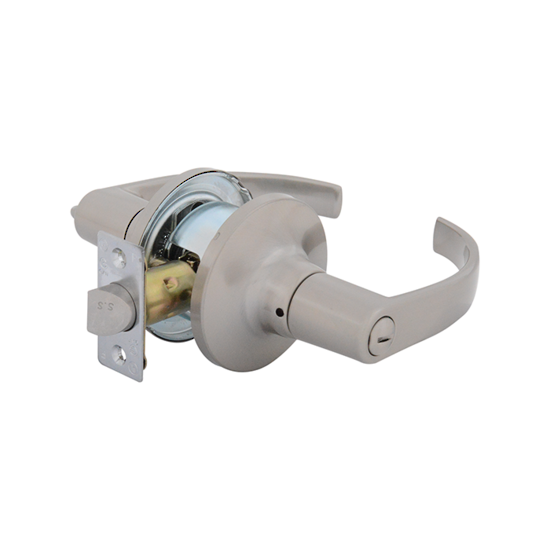

EZSET Raglan 502 Privacy Leverset SN

Stock Code:
EZ502RNALSN
Price:
$161.64 (Incl. GST)

Description

Ezset commercial privacy leverset

Features:
- Auto release function
- Concealed mounting screws
- Protection sleeve design
- Reversible or non-handed design
- Can accommodate security profile PD type barrel

Functions: Privacy
Grade: 2 Commercial Tubular Leverset
Certification: ANSI A156.2
Fire Rating: Fire rated for both NZ Fire Doors and Pacific Fire Doors
Finish: Satin Nickel
Backset: 60mm - 70mm Adjustable
Door Thickness: 35mm - 51mm
Door Prep: 54mm hole and 25mm edge
Rose Cover: 75mm
Material: Satin Nickel pressure die cast zinc lever

Latch:
Faceplate - Square Corners (25.4mm x 57mm)
Bolt - Stainless Steel with Powder Metallurgy 1/2" throw (12.7mm)

Strike: D Strike (28.2mm x 69.5mm x 2.0mm)
Packaging: Box Pack only

Enquire for Availability
