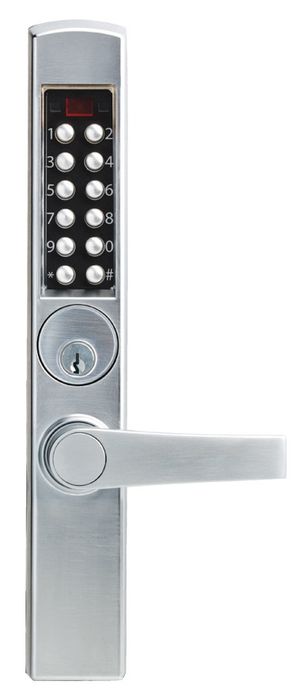

Kaba E-Plex 3065 Narrow Stile with Lever

Stock Code:


The Narrow Stile E-Plex 3000 suits all aluminium doors and narrow stile commercial doors.

Narrow Stile lock for aluminium door frame of glass door installation
Users-300 codes per door; over 100 million possible code combinations
The most recent 9,000 lock events are recorded in memory including use of the mechanical key override
Locks are programmed via keypad or with optional Microsoft Excel based software—Simplifies management of doors and users as facility's number of users and access points grow
Locking Device Options: Retrofits inside trim for Adams Rite® locks 1850, 1950, 4070, 4510, 4520, 4530, 4710, 4720, 4730, 4900, 4920AN, MS 1850S, MS 1950S and 8400 Series (Not Included with lock)
Stand-alone battery power - up to 180,000 cycles

Operation Mode Options:
PIN access
Passage — PIN or key enabled, can be pre-programmed to re-lock after a certain number of hours (from 1 to 24)
Lockout — PIN
Latch Holdback — PIN or key enabled, lever activated


Satin Chrome (standard)
Dark Bronze (optional)

Certification and Standards:
2 Hour Fire Door Rating
Indoor/Outdoor Approved
ADA compliant
Temperature -35° C to 66° C

3-year warranty from date of installation; built-in warranty counter in lock memory
