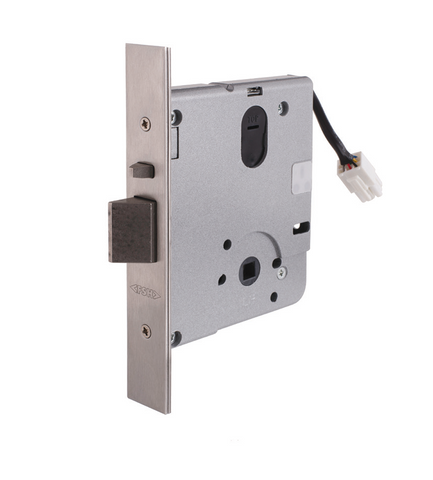

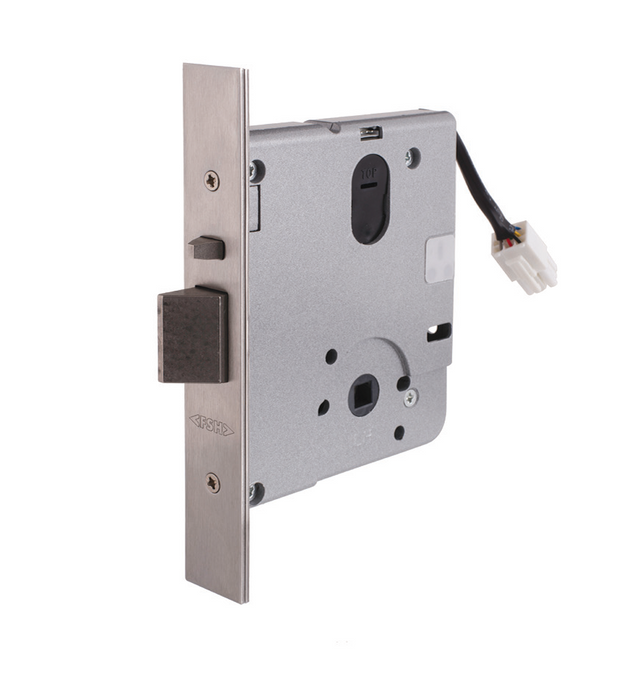

Legge 990 Elect Lock Vest F/Safe Montitored LH
Description
The Legge 990 Series locks can be easily site configured as follows:
• single-sided locking (Vestibule) / double-sided locking (Combination)
• power to lock (fail safe) / power to open (fail secure)
• left hand / right hand operation
Function
Vestibute and Combination lock (field selectable of either/or both sides locked)
Lock handed (Left Hand/Right Hand field selectable)
Lock Operation FAIL SAFE / FAIL SECURE adjustable on site - one product for both applications
Voltage/Current Multi-voltage - 12-24VDC / 350mA momentary, 100mA operation including
Door position monitoring by reed switch
Lock status monitoring by a combination of 3 locking parameters, locking bar (Hub/Handle/s locked), deadlatching bolt (depressed), latchbolt (out)
Dual key override monitoring (KOM)
Request to exit (REX) via hub/handle(s)
LED indication
LED furniture if applicable
Reverse polarity protected
Lock secure status and key override microswitch max. rating 500mA @30VDC
Door status reed switch max. rating 100mA operating
Enviromental -20 to +60 degrees C
Door Thickness 32-50mm
Backset 60mm Optional 70mm, 89mm and 127mm
Cabling 3m cable with 12 pin plug supplied
Standard Finish Satin Stainless Steel
Factory Configuration: Vestibute / 60mm backset / Fail safe / Left handed / Satin chrome finish
Approvals
Tested to 4 hour on fire door assemblies as specified in AS/NZ 1905.1 - 1997 Part 1 Fire Resistant Doorsets
Conforms to S3* (Security) and D3 (Durability) Austalian Lock Standard (AS4145.2:1993)
Conforms when used with equivalent S3 keying system
