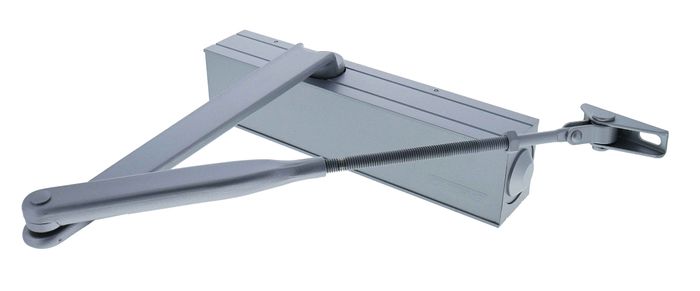

Carbine Radius EN2-6 40kg-120kg Door Closer - Sil
Description
Adjustable power size 2-6
Parallel bracket mount on size 3-5
Max door width 1400mm
Size 2 width of 850mm and weight of 40kg
Size 3 width of 950mm and weight of 60kg
Size 4 width of 1100mm and weight of 80kg
Size 5 width of 1250mm and weight of 100kg
Size 6 width of 1400mm and weight of 120kg
Adjustable delayed action
Body size 256.5mm x 60mm x 48mm
Available in silver finish
Fire rated for 2 hours
Constructed from 6061 grade aluminum
Tested to EN1154 standards
Cycle tested to 500,000 cycles
Standard arm 180 degree opening
Parallel arm 130 degree opening
Sliding arm pull 180 degree, push 110 degree opening (120 degree CDC-5)
Hold open 130 degree opening (180 degree, hold open angle 70-150 degree CDC-5)
Adjustable closing & latching speed
Adjustable back check
Thermo-constant valve
Surface mount
Transom mount on push side
Rack & pinion
Positional mounting for closer strength
Supplied with standard and parallel arm fittings
Single-action door
Non-handed installation
Supplied with timber and self-drilling metal screws
Constructed with extruded anodized aluminium body
Slide rail arms for the CDC range include the hold open insert
