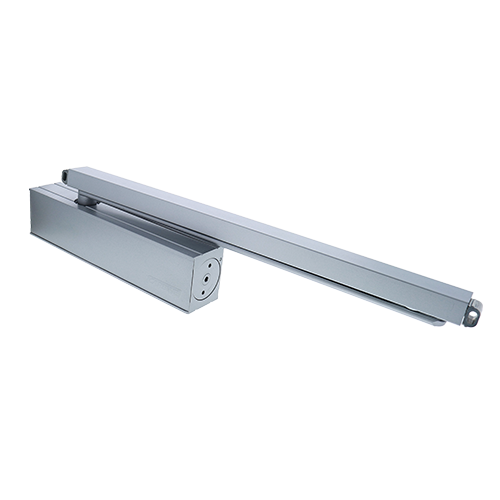

Carbine Radius Cam Action 2-5 Push Sil
Description
For push side of door
Adjustable power size 2-5
Max door width 1250mm
Size 2 width of 850mm and weight of 40kg
Size 3 width of 950mm and weight of 60kg
Size 4 width of 1100mm and weight of 80kg
Size 5 width of 1250mm and weight of 100kg
Adjustable delayed action
Body size 257mm x 60mm x 48mm
Fire test for 2 hours
Constructed from 6061 grade aluminum
Tested to EN1154 standards
Cycle tested to 500,000 cycles
Regular and transom pull 180 degree opening
Transom push 110 degree opening
Adjustable closing & latching speed
Adjustable back check
Cam Action
Positional Fixing Available (1)
Thermo-constant valve
Surface mount
Supplied with standard track arm
Door mount on pull side & transom mount on push side
Single-action door
Non-handed installation
Supplied with timber and self-drilling metal screws
Constructed with extruded anodized aluminium body
Available in silver finish
