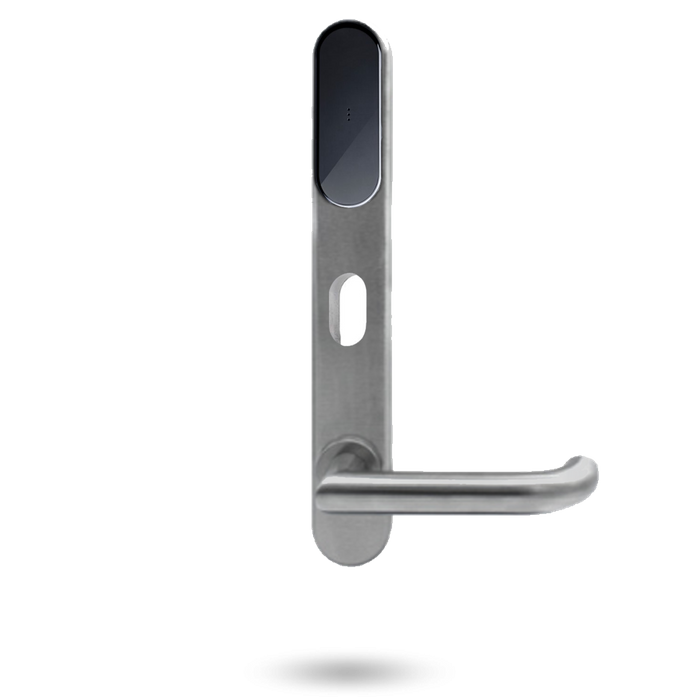

SMARTair I-Max Esc R4N Prowireless 64mm KO
Description
SMARTair® Wireless
The SMARTair® Wireless is controlled directly from the system manager’s PC, this sophisticated version of SMARTair® notifies managers immediately about events at every door, enabling them to change authorizations and schedules and even open distant doors – without leaving their desks.
Features
Multi-authentication RFID only
RF Module 915MHz with 0 configurable channels from 915.00 to 922.25MHz in steps of 0.25MHz each channel Auto-link with communication Hubs (easy setup)
Reading distance 2cm to 4cm read/write distance with standard RFID credentials
Non-volatile memory. The escutcheon can be programmed to operate in 2 modes:
Normal mode for 1500 users and 600 events
High traffic door mode for unlimited users filtered into 48 groups (permissions) and 1000 events
Read-time clock and calendar:
28 time zones with 5 time periods (week days and holidays selectable)
State tables: configure 20 changes of operating modes in a door per day (switch door from lock to unlock)
Yearly calendar: is updated every month automatically by the wireless system
Automatic DST: daylight Saving Time change updated with calendar
Key override (570 Oval cylinder not included)
Compatible with Lockwood Selector® 3770 series NO HUB DISC mortice locks with varying backsets (Lockwood Selector® not included)
Accepts 7.6mm spindles. Spindle is dismountable, for flexibility in field (STCCSPIAKIT3844 included to suit 38mm to 44mm door thickness)
Suitable for timber or aluminium doors
Medium to high traffic volume
High retrofit (compatible with most common mortise locks) drilling, no cabling
Doors from 30mm up to 110mm (thicker doors may be possible on request)
Easy battery change
Maintains clock/calendar for 5mins without batteries
Battery status reported on every event or once a day if no event happens
Battery (from 60,000 to 80,000 cycles)*1 maximum 2 years standby*2
Type of batteries: 3 LR03 AAA 1.5V alkaline batteries
Rated IP55 up to 85% humidity -20°C to + 70°C
Approved for use on fire doors in New Zealand*3
RFID technologies MIFARE Classic and Ultralight
Emergency opening jack connection is available to connect the emergency kit
Supplied in trade pack
*1 Depending on reading technology (MIFARE, iCLASS etc.)
*2 Depending on cycles per day.
*3 Please consult with Door Hardware Manufacturer before ordering
Operating modes
Standard default operating mode. Freewheeling handle until valid credential presented then connects to spindle when access is granted and allows to open the door for 4 to 10 seconds (configurable). Free exit, internal handle always opens door.
Passage mode. Escutcheon is always in open mode. (configured by time zones or by authorized user after double badging). Free exit, internal handle always opens door.
Double user: two valid credentials needed to open the door. First user: lock in standard mode until first valid user enters, then will remain in passage mode (until closed by authorized user or automatically by time zone, state table)
SMARTair® is an electronic handle set, which provides completely autonomous single door control and electronic master key system features. The SMARTair® special design and technology provides an entirely new level of functionality when compared to mechanical keys and cylinders or wired online access control systems.
Finish
Escutcheon - Stainless Steel
Module - Black
