SMARTAIR I-READER DESIGN WIRELESS - R4N MIFARE 1 RELAY BLACK

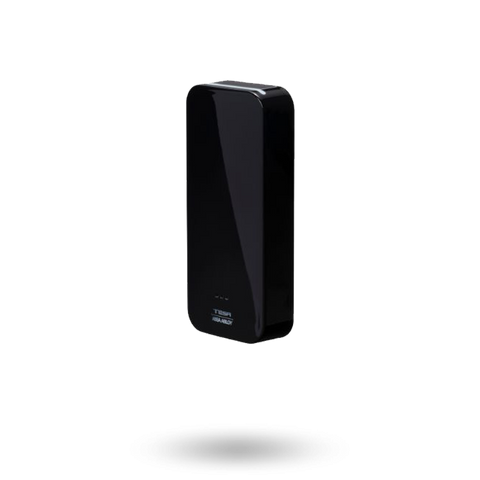

SMARTair® Design i-Reader
The SMARTair® i-Reader is a streamlined digital access for any opening where locking or blocking is automated — from entrance doors and turnstiles to lifts and car parks, including outdoors. The SMARTair® i-Reader enables fast, hassle-free digital access via a range of credentials, including cards, fobs, badges, and mobile keys stored on a smartphone. It is mobile ready from day one, for deploying encrypted mobile keys today or in the future.
Easy installation, powerful management features
Adding a SMARTair® i-Reader to any new or existing SMARTair® system is seamless, whatever management option is in use. The SMARTair® i-Reader offers real-time control and remote operation in Online mode. A choice of model sizes and mounts adapts to different locations and applications. For safety and convenience, a SMARTair® i-Reader fitted at a parking barrier can detect a driver’s mobile credential from up to 5 metres away.
Robust design and contemporary aesthetics
The SMARTair® i-Reader's contemporary aesthetics and customizable LED simplify use and blend with other devices in the SMARTair® family to harmonize interior design. A robust build quality – including IP56, IK09 certification – minimizes ongoing maintenance needs. Recognizing a growing focus on sustainability, the SMARTair® i-Reader consumes up to 70 percent less energy than previous models.
The relay board enables precise electrical control of the locking mechanism. Thanks to its design, the relay is physically separated from the reader, and secure, encrypted communication between the two ensures protection against unauthorized access.
i-Reader Features
Wireless online RF Module (connected to control/relay board) 868MHz, 902MHz, 915Mhz or 922MHz selectable in field
30 configurable channels
Auto-link with communication Hubs (easy setup)
Reading distance: 2-4 cm read/write distance standard RFID credentials. Barriers and gates open when a valid Openow credential is used up to 5 metres away — simple and safe for drivers
3 PIN connection is available to connect the SMARTair® Portable Programmer or SMARTair® PCTOLOCK adapter
RFID reader with configurable LED (green/red/blue) and sound buzzer for different warning signals: access authorized or denied, etc.
High traffic volume
Exterior usage
IP56 (Wall reader)
Up to 85% humidity without condensation -20°C to +70°C
Hardware compatibility and installation with electromechanical devices to unlock the door (e.g. electric strike plates, electromagnetic locks)
Power supply 12-24 VAC/VDC powered through control/relay board
Maximum power consumption (reader + relay board) 300mA @ 12V /150mA @ 24V
Class 6 UTP cable or higher between reader and control relay board (power supply and cable not included)
Multi-Technology MIFARE Classic and Ultralight, ISO 15693, SKIDATA, DESFire and Mobile Apps
Certifications CE (EMC, R&TTE), UKCA, ROHS, REACH, WEE, IP56 and IK09
Mounting of reader module compatible with standard electrical boxes
A back plate is included in the i-reader model if surface mounting is needed
Upgradability Wall readers can be upgraded on the field:
Openow-BLE by Openow activation card/s. No extra hardware is required
Wireless Online by adding RF module to control/relay board
Compatible mobile solutions Openow® (Bluetooth Low Energy) and TESA SMARTair
Relay Board with one relay to manage the door blocking device and two extra inputs for:
Request to exit button
Door sensor
Supplied in trade pack
Control Unit Features
Upgradeable firmware
Non-volatile memory
The wall reader can be programmed to operate
in 3 modes:
Extended mode: 6500 users and 1200 events
Normal mode: 3000 users and 1200 events
High traffic door: unlimited number of users filtered into 48 groups (permissions)
Real-time clock and calendar:
30 time zones with 5 time periods (week days and holidays selectable)
365 day calendar for define holidays
Yearly calendar needs to be updated once a year via portable programmer / wireless
Automatic DST: Daylight Saving Time change updated with calendar
Maintains clock/calendar for 8 hours without power supply
The relay board is supplied in a box that allows surface mounting
The relay board is a new generation product with following connections:
Connector for reader
Power supply 12-24 AC/VDC connector
Door position (sensor not included). Intrusion or door left open will be reported.
Request to exit (push button not included)
1 output relay (NO, C, NC) to command the electrical / electromechanical door device. The relay does not power the door device.
Wireless RF module connector
Operating modes
State tables: configure 20 changes of operating modes in a door per day
Standard: Default operating mode. Closed until valid credential presented, then allows to open the door for 1 to 240 seconds (configurable)
Passage mode: door is always in open mode (configured by time zones or by authorized user after double badging)
Double user: Two valid credentials needed to open the door
First user: door in standard mode until first valid user enters, then will remain in passage mode
Finish
Black
