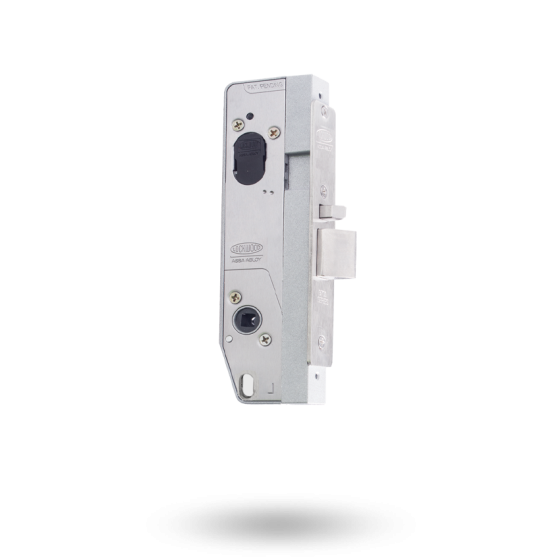

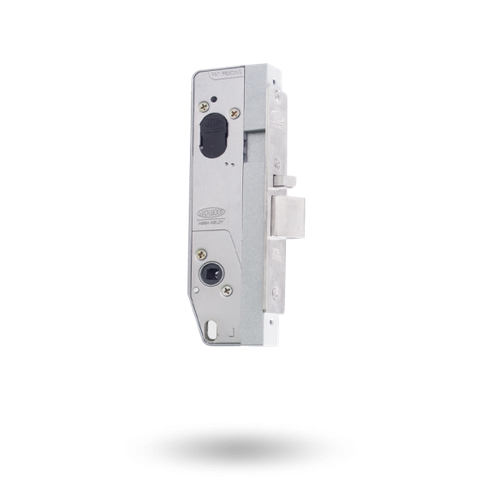

SMARTair 6782 38mm Mortise Lock - No Hub
Description
SELECTOR PRIMARY ESCAPE 38MM MORTISE LOCK - NO HUB DISC SUITS SMARTAIR STAINLESS STEEL
Features
Escape function
Easy red/green function setting
All lock settings are made from under the faceplate allowing for simple in-door configuration
Standard primary locks include anti-lockout and holdback capabilities
Improved cylinder functions including lock/unlock and retract latch as standard
Through-fixing of rose furniture turn knobs and escutcheons
Reduced range of cylinder cams and turn adaptors relative to other commonly available commercial cylinder mortice locks
Deadlatching only
No hub disc - will accept 7.6mm single solid spindle
Accepts oval 570 cylinders
38mm backset
15mm Latchbolt
Non-handed
Cylinder Retaining Pin Hard-drawn spring steel wire, corrosion protected
Suits metal doors 35mm to 50mm door thickness
Suits hollow style aluminium door section with 38mm minimum internal depth
Supplied in trade pack
Australian designed
Case Dimensions
Height: 194.5mm
Width: 20mm
Depth: 55mm
Faceplate Dimensions
Hieght: 156mm
Width: 25mm
Depth: 2.5mm
Application
A comprehensive range of cylinder mortice locks for narrow stile hinged doors, suitable for heavy duty use in industrial and commercial buildings, shop fronts, clubs, schools, hospitals, hotels and similar buildings
Case and Faceplates
High purity zinc alloy material cases with stainless steel chassis plates. Stainless steel faceplates provided as standard
Brass faceplates available for alternative finishes
Latch Bolts
Latch bolts are made with stainless steel
Deadlatching where applicable is achieved by an auxiliary stainless steel latch bolt
Reversible for both left and right hand doors, opening in or opening out whilst lock is in door
Electric Strike compatibility
Separate auxiliary bolt moves into lock case simultaneously with latch bolt
Radius bolt provides greater deadlatch throw and smoother closing action
Door Clearance
To ensure correct functioning of the deadlatching mechanism and security for all locks, the clearance between the door and the frame should be 3mm. The deadlatching will operate up to 8mm door clearance, however door clearances over 5mm are not recommended.
Security
All Lockwood Selector® 3780 Series Cylinder Mortice Locks conform with Level S7 (Physical Security) Australian Lock Standard (AS-4145.2-2008). Conforms to Level S8 (Physical Security) when fitted with door furniture and anti-drill cylinder.
Durability
All Lockwood Selector® 3780 Series Cylinder Mortice Locks conform with Level D8 (Durability) Australian Lock Standard (AS4145.2-2008).
Anti-Corrosion
All Lockwood Selector® 3780 Series Cylinder Mortice Locks conform with Level C6 (168 hours) Australian Standard (AS4145.2-2008).
Cylinder
Accepts standard Lockwood oval shaped brass cylinders and brass barrels. Lockwood cylinders include bump resistant five pin tumbler mechanism.
Functions require the use of different cams and adaptors.
Keying
Lockwood locks can be keyed to a number of controlled and/or specially keyed systems. These range from legally protected keys to protect against unauthorised duplication and can also include specially designed keying systems such as master key systems. This allows for different levels of mechanical access control - please note these are not included and are sold separately
Extended Cylinders
Modular Cylinder Extensions are available for thicker doors - please note these are not included and are sold separately
Timber Doors
Specify 3782-TFKIT for timber door fixing kit to convert an aluminium fix lock suit timber door fixing. The timber door fixing kit includes a long faceplate, strike and screws to suit a timber door and jamb
Please note these are sold separately
Rebate
Rebate kits to suit 13mm standard rebate are available - please note these are not included and are sold separately
Electric Strikes
Lockwood offers a wide range of electric strikes which are compatible with the Lockwood Selector® 3770 series mortice lock - please note these are not included and are sold separately
Finish
Stainless Steel
