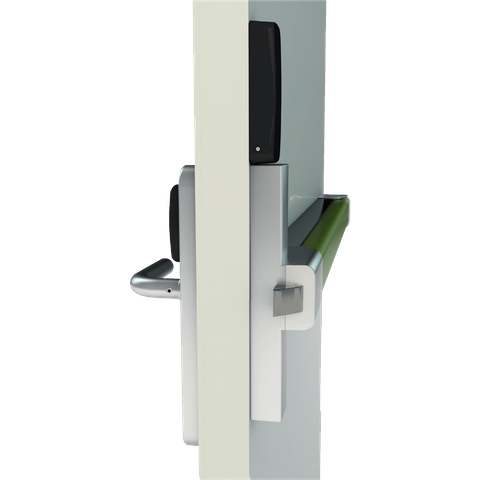

SMARTair I-Max Esc R4N Prowireless Mifare 00mm Rim Panic
Description
SMARTAIR ESCUTCHEON PROWIRELESS SENA LEVER - IMAX R4N MIFARE RIM PANIC BAR STAINLESS STEEL
SMARTair® Wireless
The SMARTair® Wireless is controlled directly from the system manager’s PC, this sophisticated version of SMARTair® notifies managers immediately about events at every door, enabling them to change authorizations and schedules and even open distant doors – without leaving their desks.
Features
Authentication RFID only
Reading distance 2cm to 4cm read/write distance with standard RFID credentials
Non-volatile memory. The escutcheon can be programmed to operate in 2 modes:
Normal mode for 1500 users and 600 events
High traffic door mode for unlimited users filtered into 48 groups (permissions) and 1000 events
Read-time clock and calendar:
28 time zones with 5 time periods (week days and holidays selectable)
State tables: configure 20 changes of operating modes in a door per day (switch door from lock to unlock)
Yearly calendar: is updated every month automatically by the wireless system
Automatic DST: daylight Saving Time change updated with calendar
Accepts 7.6mm spindles. Spindle is dismountable, for flexibility in field (STCCSPIAKIT3844 included to suit 38mm to 44mm door thickness)
Suitable for emergency doors
Medium to high traffic volume
High retrofit (compatible with most common mortise locks) drilling, no cabling
Doors from 30mm up to 120mm (thicker doors may be possible on request)
Easy battery change
Maintains clock/calendar for 5mins without batteries
Battery (from 75,000 to 105,000 cycles)*1 maximum 2.5 years standby*2
Type of batteries: 3 LR03 AAA 1.5V alkaline batteries
Rated IP56 up to 85% humidity -20°C to + 70°C (exterior escutcheon)
Rated IP56 up to 85% humidity 0°C to + 50°C (interior panic bar)
RFID technologies MIFARE Classic and Ultralight
Escutcheons can be upgradeable from UoC to Wireless Online by:
Adding RF module
Firmware upgrade
Change of internal cover (plastic top)
Emergency opening jack connection is available to connect the emergency kit
Supplied in trade pack
*1 Depending on reading technology (MIFARE, iCLASS etc.)
*2 Depending on cycles per day.
Operating modes
Standard default operating mode. Freewheeling handle until valid credential presented then connects to spindle when access is granted and allows to open the door for 4 to 10 seconds (configurable). Free exit, internal handle always opens door.
Passage mode. Escutcheon is always in open mode. (configured by time zones or by authorized user after double badging). Free exit, internal handle always opens door.
Double user: two valid credentials needed to open the door. First user: lock in standard mode until first valid user enters, then will remain in passage mode (until closed by authorized user or automatically by time zone, state table).
First user: lock in standard mode until first valid user enters, then will remain in passage mode (until closed by authorized user or automatically by time zone, state tables).

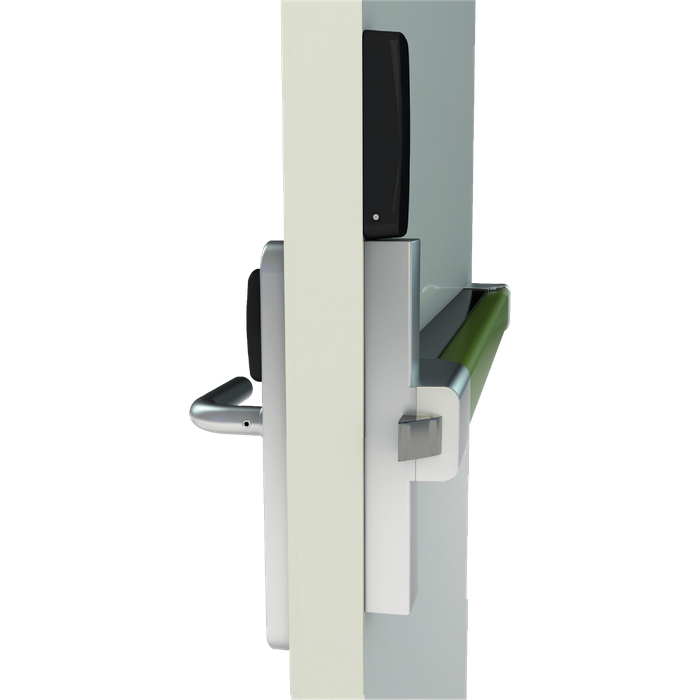

The SMARTair® Wireless Escutcheon Rim Panic Bar is a battery powered escutcheon for panic exit devices enabling nearly any emergency exit door to be controlled through the SMARTair® software. This solution offers ease of use while providing the best performance and real-time control to the installation.
Finish
Escutcheon - Stainless Steel
Module - Black
