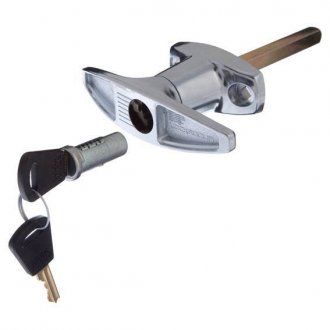

Lock Focus T Handle Front Fix

Stock Code:
LFA/HG8F
Price:
$46.60 (Incl. GST)

Description

Garage and shed doors
Sheet metal furniture

Key locking handle with 8mm square drive for operation of locking cam
Rear fix option (R) mounted via M5 tapped holes concealed underneath rose
Front fix option (F) designed to use M5 coach bolts fitted from the front of the rose
Diecast zinc handle and rose

ASSEMBLY INSTRUCTIONS
Assemble handle to rose and rotate clockwise over 1/4 turn
Assemble detent bush locating over lug on handle shaft
Assemble spindle to retainer plate by inserting into centre hole and moving spindle sideways to locate in groove
Assemble retainer plate/spindle to handle/rose by inserting spindle into square hole in detent bush and locating retainer plate in rose, with location hole aligned with boss
Insert screw into one of the three holes to suit movement required (A, B, or C/S) and tighten a maximum torque of 1.0Nm
Check function and assemble barrel to handle as required
