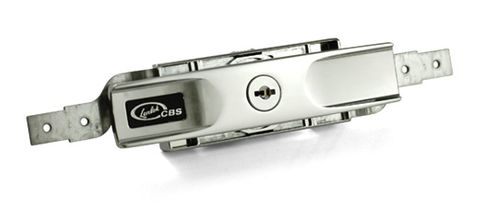

Lenlok 4321 Roller Door Lock C4
Description
•Retrofits to existing market standards e.g Lenlok 3321
•Uses 2 different barrel systems, C4 4 pin cylinder tumbler for one series, CBS wafer barrel LF36 (LF27) for other series
•C4 4 pin cylinder is LKW5 (LW4) keyway. CBS wafer barrel is LF36 (Silca LF27) keyway
•Can be supplied with or without barrel / cylinder
•Can be re-keyed without the removal of the main mechanism from the door
•Patented Cam Mechanism Design allows the lock to be changed from a freelatching mode into a deadlocking mode and vice versa
•Cam cannot be removed in the locked position
•Tamper proof screws supplied to enhance security in deadlocking mode
•The key is supplied with a cut code that can be used both from the front and back allowing locking and unlocking from inside when in deadlocking mode
•Ergonomically designed internal operating knob offers a more positive grip
•Locking arms have a 19mm throw
•High quality bright chrome finish zinc alloy metal fascia
•High quality full metal locking mechanism
•Lock body designed for minimum protrusion (smaller than existing Lenlok models)
•Supplied with tape to hold face plate on for easy installation
•Slide arms are constructed from galvanised steel for increased strength and have threaded holes for the screws making installation easier
•Adhesive logo which can be replaced with personalised customer logo on request. It can also be flipped 180 degrees for handing of the lock
•Lock body has patented integrated mechanism protectors. These keep the door from applying pressure to the mechanism
•Can be purchased in a display pack for retail purposes
•4321NB (wafer model, no barrel) accepts LF27WB barrels. The lock includes all parts except barrel, keys, cam & cam / cylinder screws
•Barrel & keys supplied along with cams, cams screws, cylinder screws
•4321-C4-NC (pin tumbler model, no cylinder) accepts C4-4PIN cylinders. The lock includes all parts except cylinder, keys & cam screws
•C4-4PIN cylinders do not include all other cams & screws , except cam screws
